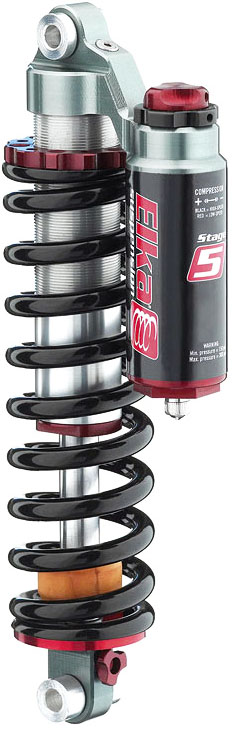

Mountain Bike

Elka’s new mountain bike line-up has been specifically designed and engineered for downhill, free-ride and all-mountain riding, aiming to provide a balanced combination of plushness, pedaling performance and comfort for each application.

To achieve this, all Elka shocks feature custom-tuned damping based on each bike’s design and intended use. This gravity-oriented line-up will consist of 4 models with different adjustment options to address customer riding styles, bicycle categories and price point objectives. The shocks will feature Elka’s intuitive concentric dual high/low-speed compression adjuster, reservoir volume and pressure adjust to control the progressivity and also rebound and preload adjustments.

Both hi-tensile alloy and titanium springs will be available for all models in a wide range of spring rates. All models will be offered in several length/stroke combinations including the increasingly popular 10.5” x 3.5” size so they can be fitted on the vast majority of bikes, past and present.



DOWNLOAD MTB APPLICATION CHART

DOWNLOAD MTB OWNERS MANUAL



Shock $450 /ea.

Hi-Tensile Steel Alloy Springs $45 /ea.
Optional Titanium Springs $295 /ea.
2-Piece Mounting Hardware Set:
2 aluminum reducers $10 /set
3-Piece Mounting Hardware Set:
1 stainless sleeve + 2 aluminum spacers $15 /set





SPECS:

BODY DIAMETER: 25mm
SHAFT DIAMETER: 14mm
RESERVOIR DIAMETER: 34mm
SPRING: 35mm inner diameter, 55mm outside diameter
DU BUSHINGS: 12.7mm (1/2" standard)
